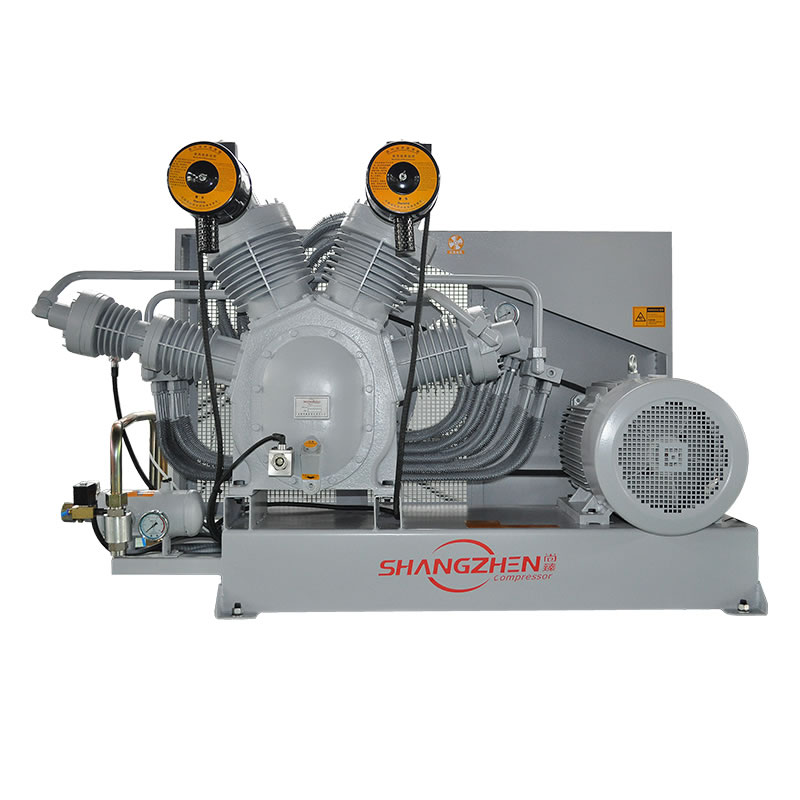

S type Air cooling Medium high pressure Series

Model:SH-S

24 hours non-stop overload design
S type 4 cylinder 3 stage
Crankshaft adopt two bearings,have the effect of heavy load capacity,steady,energy saving and low noise

market@szcompressor.com

Product Description:

  • 24 hours non-stop overload design
  • S type 4 cylinder 3 stage
  • Crankshaft adopt two bearings,have the effect of heavy load capacity,steady,energy saving and low noise
  • Original Sandvik 7C27M02 valve plate,have the longer using time.
  • Original Imported piston ring,have the effect of less oil consumption and longer using time.
  • Patented crankshaft case breathing system,ensuring the breathing cap do not have oil discharging
  • New machine design,less vibration and more stable
  • More choice,Single or muti machine linkage

Technical Parameter:

Model Type FADNm3/min PressureMPa Power
KW
Size
L×W×H mm
Weight
KG
Notes
SH-1.6/30 4cylinder,3stage 1.6 3.0 18.5 1700×850×1050 550 Horizontal
SH-2.0/30 4cylinder,3stage 2.0 22 2000×950×1200 700
2-SH-3.2/30 4cylinder,3stage 3.2 18.5×2 2030×950×1600 1200 Double vertical
2-SH-4.0/30 4cylinder,3stage 4.0 22×2 2500×1000×1700 1700
3-SH-4.8/30 4cylinder,3stage 4.8 18.5×3 3100×950×1600 1800 Three Vertical
3-SH-6.0/30 4cylinder,3stage 6.0 22×3 3800×1000×1700 2800
SH-1.3/40 4cylinder,3stage 1.3 4.0 15 1500×800×950 500 Horizontal
SH-1.6/40 4cylinder,3stage 1.6 18.5 1700×850×1050 550

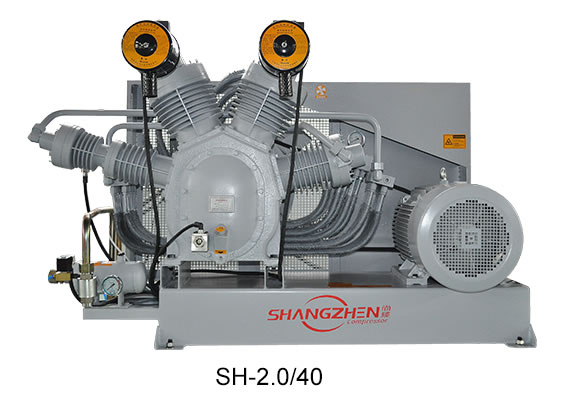

SH-2.0/40 4cylinder,3stage 2.0 22 2000×950×1200 700
2-SH-3.2/40 4cylinder,3stage 3.2 18.5×2 2030×950×1600 1200 Double Vertical

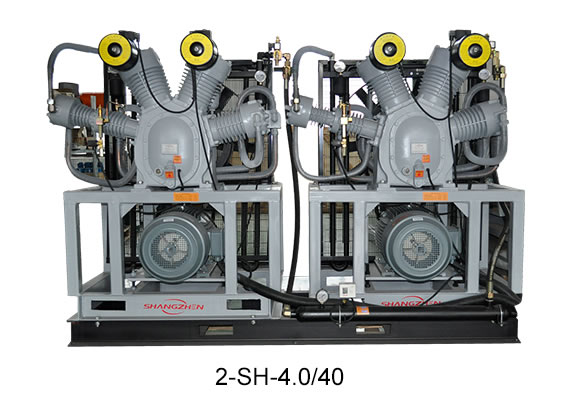

2-SH-4.0/40 4cylinder,3stage 4.0 22×2 2500×1000×1700 1700
3-SH-4.8/40 4cylinder,3stage 4.8 18.5×3 3100×950×1600 1800
3-SH-6.0/40 4cylinder,3stage 6.0 22×3 3800×1000×1700 2800
SH-1.7/50 4cylinder,3stage 1.7 5.0 22 2000×950×1200 720 Horizontal
2-SH-3.4/50 4cylinder,3stage 3.4 22×2 2500×1000×1700 1750 Double vertical
3-SH-5.1/50 4cylinder,3stage 5.1 22×3 3800×1000×1700 2850 Three vertical

Notes:

1、Performance parameters measured according to ISO2017,reference conditions:inlet temperature 20℃,inlet pressure 1barA

2、Our company reserves the right to continuing improve the technology,parameter change without prior informed

3、Special models could be customized.
