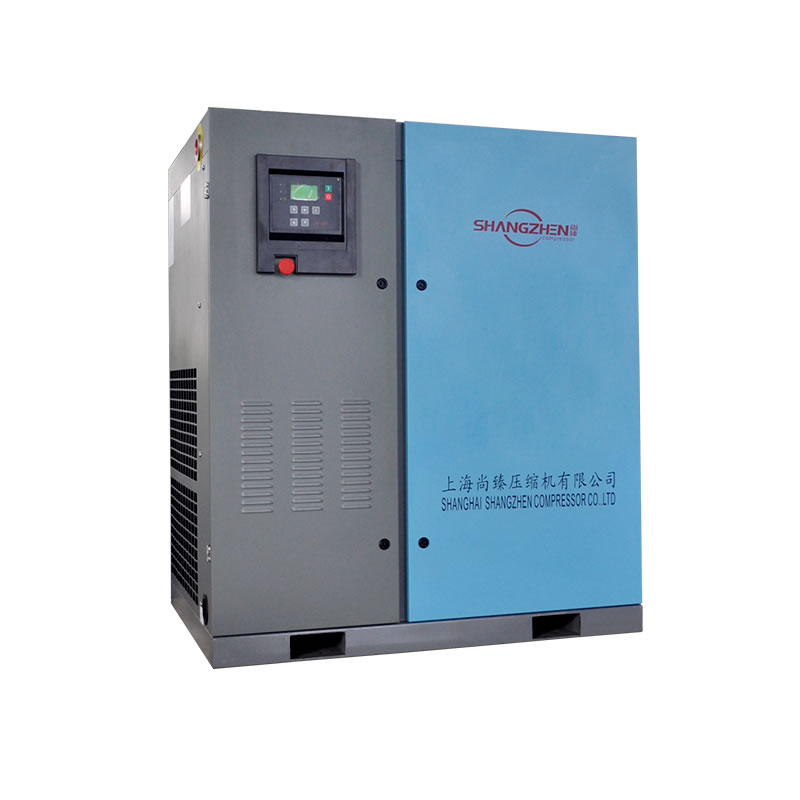

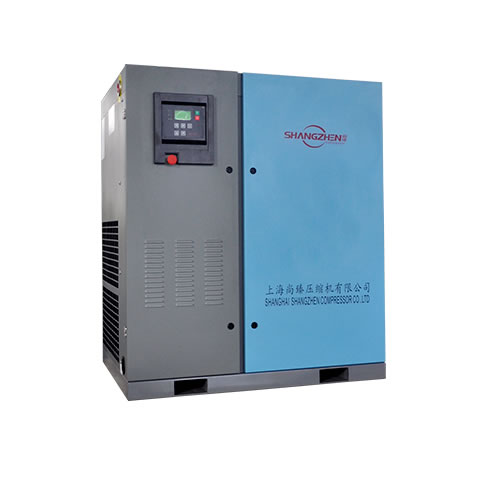

Screw Air Compressor

Model:ZB~G

Data range:0.8-50m3/min 5-13bar

Adopting high efficient big rotor,big bearing,low speed screw air compressor unit
0-100% stepless adjustment
Extraordinary cooling system design, suit to high temperature, high humidity environments,low running and maintenance cost.

market@szcompressor.com



Efficient and reliable advanced compressor

The world-renowned host. Its proprietary rotor profile and structural design, the minimum machining gap, high-precision assembly and test under extreme load, fully satisfy the requirements of your unit's reliability, performance and efficiency.

Economical running costs

Exhaust system uses 0-100% stepless adjustment. When the gas consumption is reduced, reducing the displacement along the motor current also reduced; When using gas, air compressor car running, empty for too long will be automatically shut down. When the gas consumption increases, the recovery drive, energy-saving effect is very good.

Good environmental adaptability

Extraordinary cooling system design, especially for the Asian temperature, high humidity environments. Excellent vibration isolation and noise reduction measures to make Shang Zhen twin-screw compressor installation without special foundation.

Technical Parameter :

Model FAD bar Power
KW
Size
L×W×H mm
Weight
KG
Note
ZB-10A 1.1 8 7.5 750×700×820 180 皮带
0.95 10
0.8 12
ZG-15A 1.6 8 11 1100×750×1000 320 联轴器
1.3 10
1.1 12
ZG-20A 2.2 8 15 1100×750×1000 340
1.9 10
1.6 12
ZG-25A 3.0 8 18.5 1400×850×1200 460
2.5 10
2.3 12
ZG-30A 3.6 8 22 1400×850×1200 470
3.2 10
2.9 12
ZG-40A 5.0 8 30 1400×850×1200 480
4.5 10
3.9 12
ZG-50A 6.2 8 37 1500×1000×1350 760
5.8 10
5.1 12
ZG-60A 7.7 8 45 1500×1000×1350 780
6.5 10
5.8 12
ZG-75A 9.6 8 55 1900×1250×1600 1230
8.5 10
7.7 12
ZG-100A 12.6 8 75 2000×1250×1700 1340
11.3 10
10.0 12
ZG-125A 15.0 8 90 2000×1250×1700 1380
13.8 10
12.5 12
ZG-150A 19.8 8 110 2500×1500×1850 1800
18.70 10
16.5 12
ZG-175A 24.0 8 132 2500×1500×1850 2000
21.5 10
20.0 12

Notes:

1、Performance parameters measured according to ISO2017,reference conditions:inlet temperature 20℃,inlet pressure 1barA

2、Our company reserves the right to continuing improve the technology,parameter change without prior informed

3、Special models could be customized.
