The Innovative Technology Leader.

100-400bar High Pressure air compressor 1-12m3/min

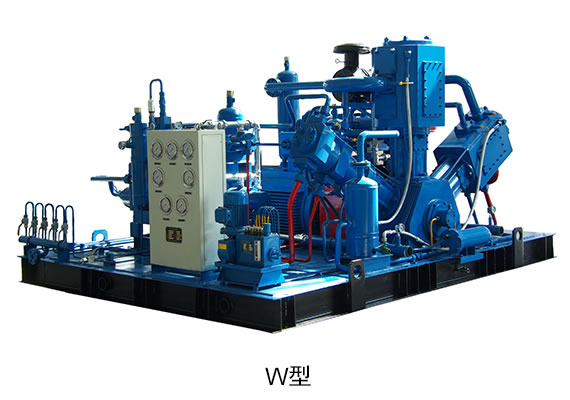

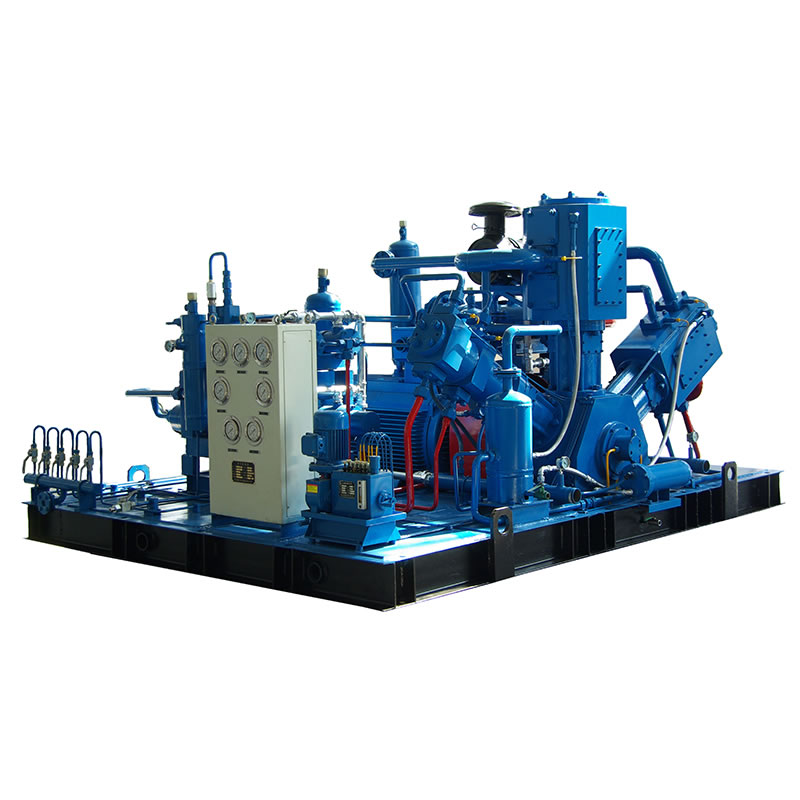

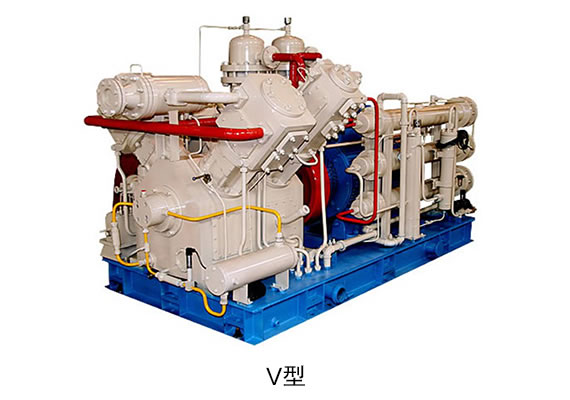

Model:SV~SW

Whole Skid-mounted structure
water cooling or mixed cooling
perfect automatic control and automatic protection function
Mainly used in aerospace, submarine inflatable, petroleum, metallurgy, light industry, defense industry, shipbuilding, machinery, research, cylinder testing, product testing, and other areas of high phosphorus.

market@szcompressor.com

Product Characteristics:

  • Whole Skid-mounted structure
  • water cooling or mixed cooling
  • motor drive or belt drive
  • perfect automatic control and automatic protection function
  • Mainly used in aerospace, submarine inflatable, petroleum, metallurgy, light industry, defense industry, shipbuilding, machinery, research, cylinder testing, product testing, and other areas of high phosphorus
  • With the characteristics of Compact structure, simple operation, beautiful appearance, easy installation, little overall vibration, high reliability, could completely replace the imported products
  • After drying equipment, atmospheric dew point can be reached to 55 degrees Celsius



Technical Parameter:

Model

FAD Nm3/min

Pressure MPa

Speed r.p.m

Size

L×W×H mm

Power

KW

Weight

KG

SV-1

1.0



10-45



980

1700×1100×1200

30

1000

SV-2

2.0

740

2300×1400×1400

45

3000

SV-3

3.0

980

2400×1500×1500

75

3000

SW-6

6.0

740

2700×2700×2000

110

7000

SW-7.5

7.5

740

2700×2700×2000

160

7000

SW-10

10.0

740

3100×3000×1900

200

7000

SW-12

12.0

740

3300×3000×2200

200

10000

Notes:

1、Performance parameters measured according to ISO2017,reference conditions:inlet temperature 20℃,inlet pressure 1barA

2、Our company reserves the right to continuing improve the technology,parameter change without prior informed

3、Special models could be customized.
